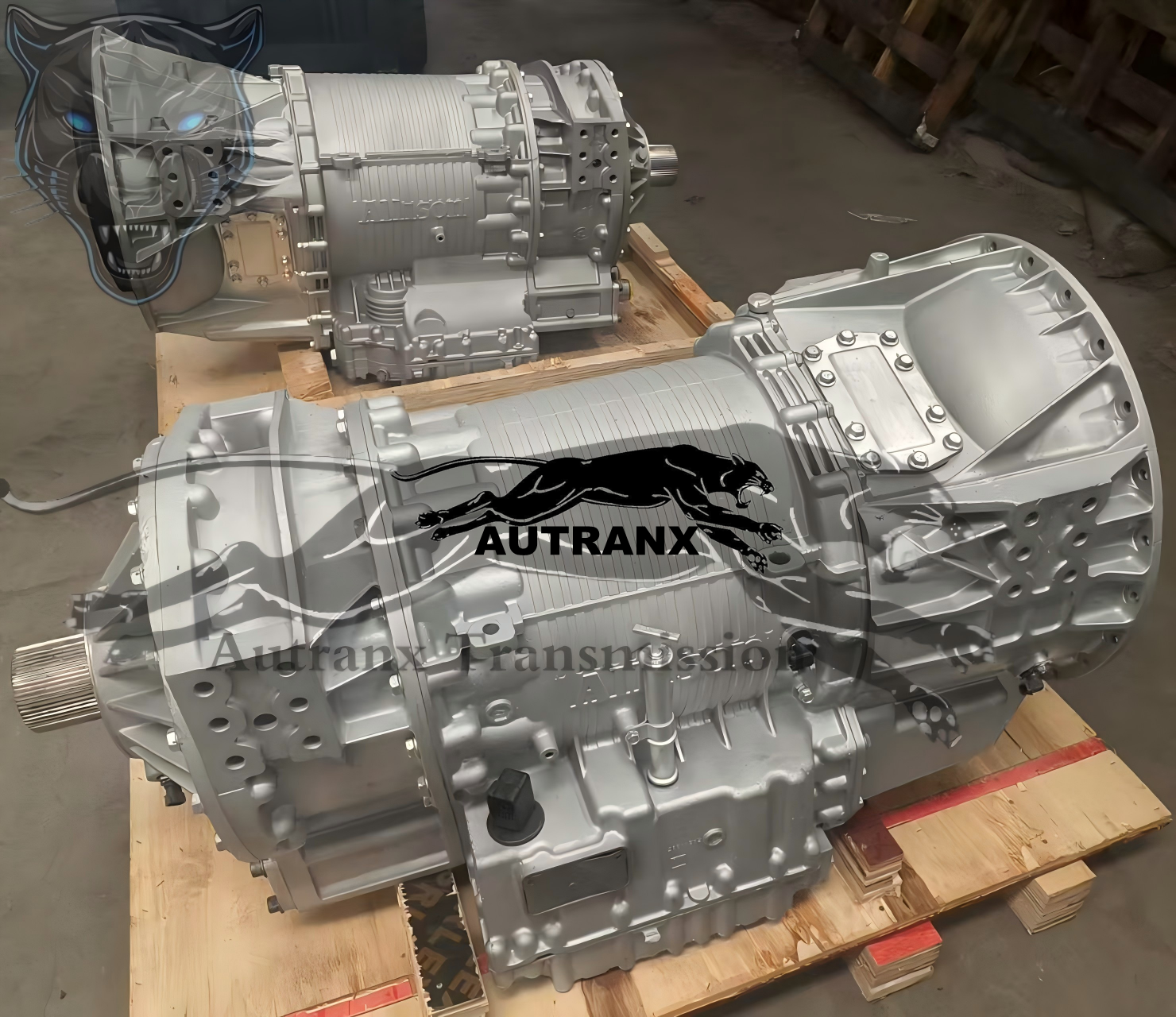

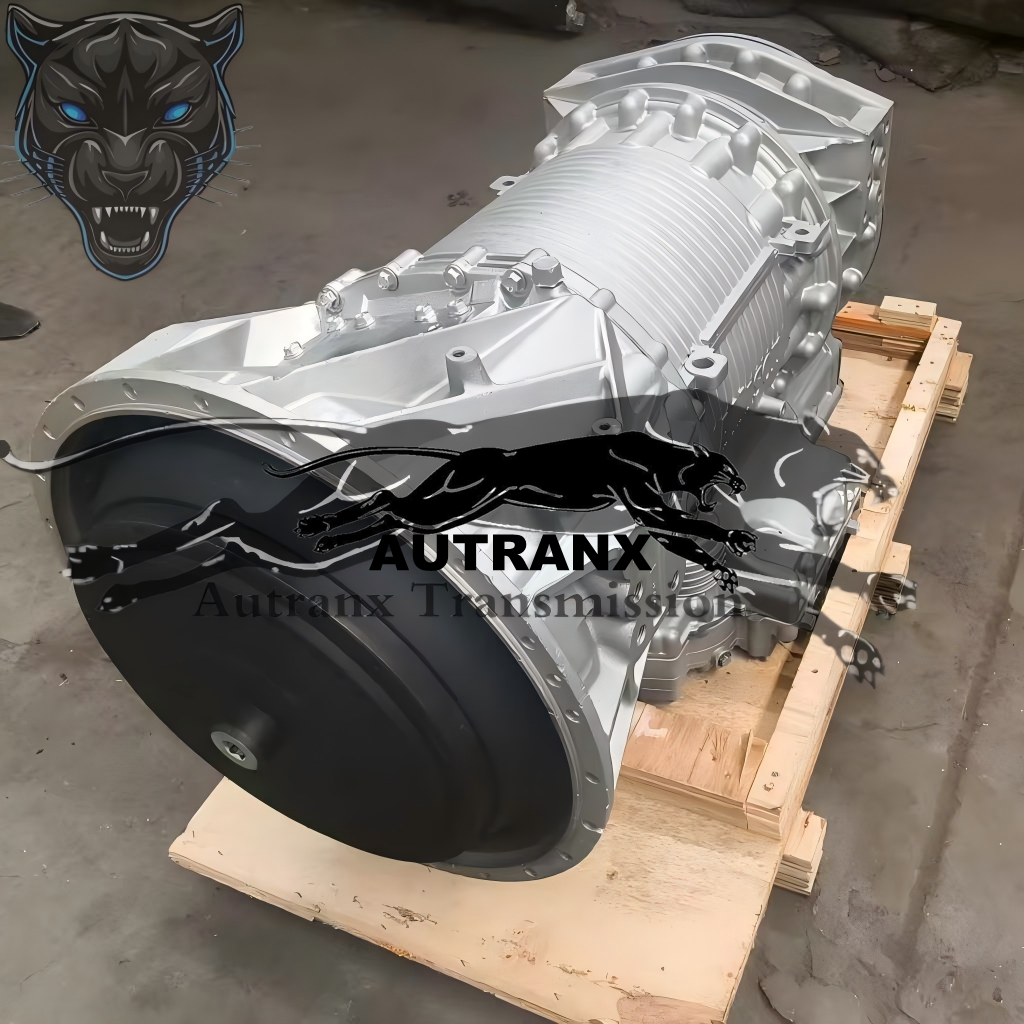

Allison Transmission Oil Field Series 4700 OFS 4700OFS for Mobile Drilling Rig,

Description: Allison Transmission 4700OFS,4700 OFS,

Application / RATINGS: Oil Field Series, Mobile Drilling Rig

Specification: Allison Transmission 4700OFS,4700 OFS,

* Input Torque Gross ：2508 (1850) N•m (lb-ft);

* Input Power Gross (2): 447 (600) Kw (hp);

* Turbine Torque Net (3): 3525 (2600) N•m (lb-ft);

* DRIVETRAIN INTERFACES

   Acceptable full-load engine governed speed:1700-2300 rpm;

   Acceptable engine idle speed range (with transmission in Drive):500-800 rpm;

* CONTROL SYSTEM:Allison 4th Generation Electronic Controls with closed loop adaptive shifts.

* TORQUE CONVERTER: One stage, three element, polyphase.Includes standard integral damper which is operational in lockup.

* Driver-to-Transmission Interface：Cab-mounted shift selector, pushbutton or lever with two-digit display (range selected and range attained);

   Communication Protocol - Engine/Vehicle Systems Interface: SAE J1939, SAE J1587, ISO 9141, IESCAN;
